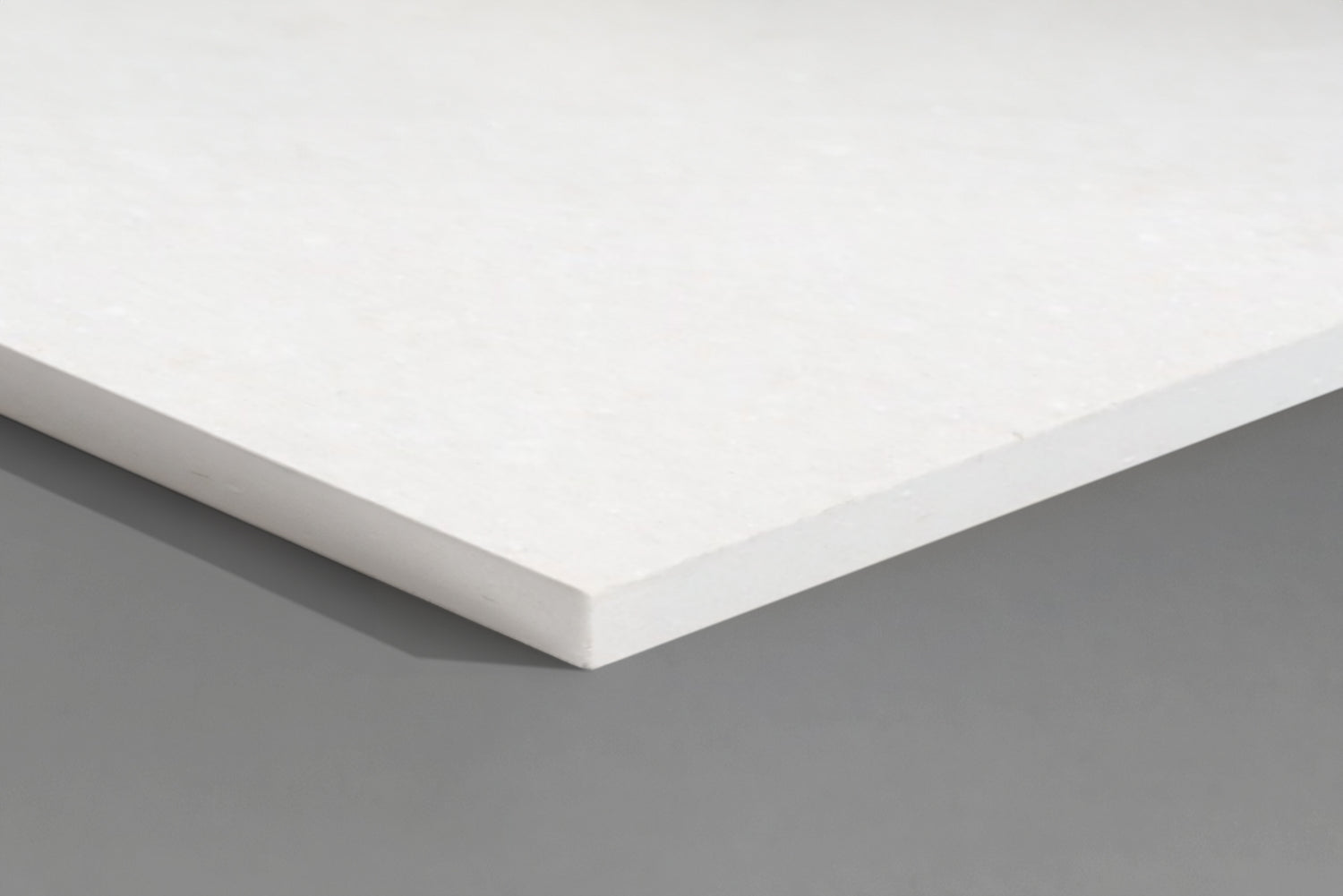

CS85™ - 48” x 96” x 3/4"

$1,234.54
Taxes, discounts and shipping calculated at checkout.

Taxes, shipping and discounts calculated at checkout.
CS85™ is a high-strength, structural-grade type II calcium silicate insulation with an average density of 85 pcf (1362 kg/m³). It is an inorganic, non-combustible, high-temperature insulation designed for use in fire protection, heat processing, and electrical resistance applications. It can be used in systems operating at temperatures up to 1800°F (982°C). CS85 is manufactured primarily from lime, silica, and reinforcing fibers using a Tobermorite crystalline structure. This product is white in color, essentially dust-free, and contains no asbestos, mercury, or lead.

Product Downloads:

Product Details
  • Manufacturer

    BNZ Materials, Inc.

  • Size

    48” x 96” x 3/4”

  • Weight

    170 lbs. per sheet

  • Max. Sheets Per Pallet

    20

  • Shipping Classification
    50
  • Performance and Testing

    Tested in accordance with ASTM D495 and D257, CS85™ offers excellent electrical insulation with high arc resistance (304 seconds) and volume resistivity (4.52 × 10¹² ohm-cm). It maintains dimensional stability at temperatures up to 1800°F.

Applications

Applications for CS85 include industrial oven insulation, press platen insulation, induction furnace casing, and kiln insulation. It is well suited for use in foundry core and blow plates, electrical resistance insulation, and hot glass handling. Due to its non-corroding nature and resistance to disintegration after prolonged water immersion, CS85 performs exceptionally in high-moisture environments where metal components may corrode and other insulation materials may degrade. It is also ideal for high-temperature applications such as molten aluminum insulation, crucible linings, bushings, washers, spacers, covers, and tops.

Installation and Fabrication

CS85™ panels are strong, dense, and dimensionally stable, yet easily fabricated using standard tools. They can be cut, machined, and drilled with conventional carpentry equipment, making them suitable for a wide range of industrial applications. Panels can be securely fastened using screws or other mechanical fasteners as needed.

Shipping

Shipping will be automatically calculated at checkout for all orders within the contiguous United States. Orders of in-stock materials generally ship from our factory within 1-3 business days after receipt of the order. Delivery times vary depending on location within the United States. You will receive a confirmation email with tracking information on the day your order ships.

Use our Contact Us form to receive shipping charges for delivery outside of the contiguous United States, or for expedited delivery.

There is a $65 charge per pallet. Please note that depending on order size, a shipment may contain multiple pallets. Maximum pallet quantities are noted in the Product Details above.

Shipping class for CS85™ - 48” x 96” x 3/4" is 50.
