CS85

CS85™ is a high-strength, structural-grade type II calcium silicate insulation with an average density of 85 pcf (1362 kg/m³). It is an inorganic, non-combustible, high-temperature insulation designed for use in fire protection, heat processing, and electrical resistance applications. It can be used in systems operating at temperatures up to 1800°F (982°C). CS85 is manufactured primarily from lime, silica, and reinforcing fibers using a Tobermorite crystalline structure. This product is white in color, essentially dust-free, and contains no asbestos, mercury, or lead.

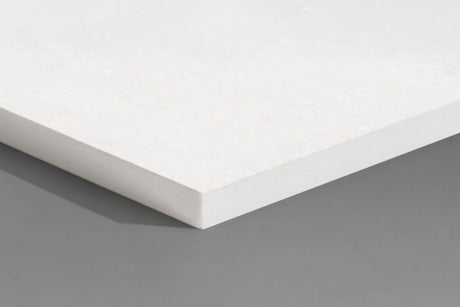

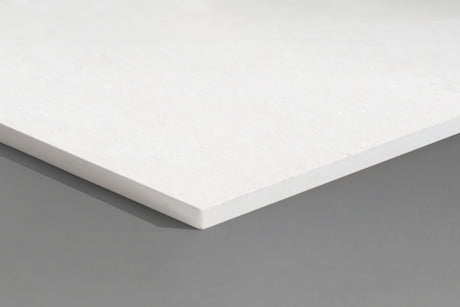

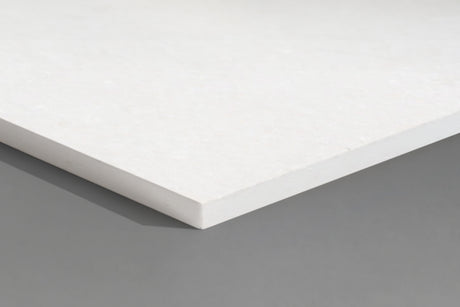

CS85™ is available in thicknesses from 1/4" (6mm) to 3" (76mm) and is supplied in standard sheet sizes of 4' × 8' (1219mm × 2438mm).

** Alert **

BNZ Materials Has Closed Their Production Facility

BNZ Materials, the sole manufacturer of CS85 and Marinite, has permanently ceased production of these materials. As a result, all remaining CS85 and Marinite inventory is limited and availability will continue to decrease as existing stock is sold.

If the CS85 material you need is not showing as available below, please contact us directly at customerservice@awmcousa.com or call (708) 478-6032. We may still have inventory available or we can identify suitable replacement materials to keep your project moving forward without delays.

View the full CS85 and Marinite Replacement Guide
