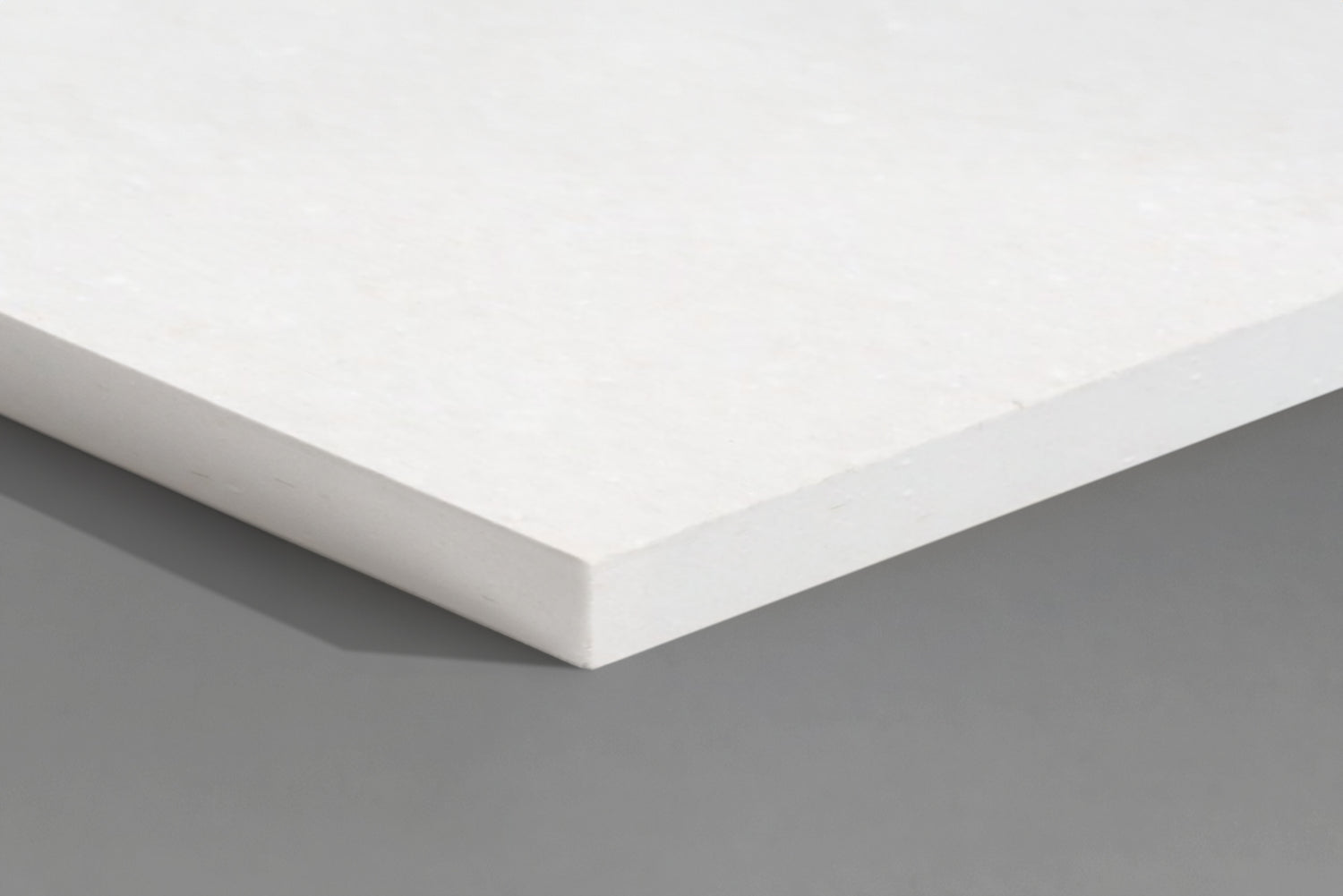

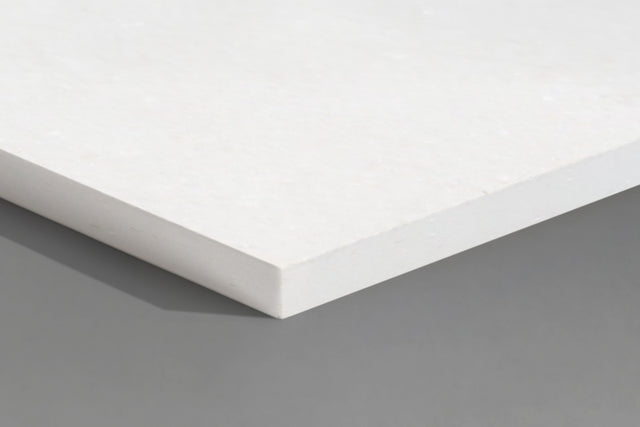

Super Firetemp® M - 48” x 96” x 1”

$361.45
Taxes, discounts and shipping calculated at checkout.

Taxes, shipping and discounts calculated at checkout.

Super Firetemp® M, by Johns Manville, is a type II calcium silicate insulation with an average density of 28 pcf (449 kg/m3). It is an inorganic, non-combustible, high-temperature insulation for fire protection applications. It can be used in systems operating up to 1800°F (982°C). Super Firetemp M is made primarily of lime, silica, and reinforcing fibers. This product is white, essentially dust-free, contains no asbestos, mercury or lead, and meets or exceeds ASTM C656, Type II Grade 6.

Product Downloads:

Product Details
  • Manufacturer

    Johns Manville

  • Size

    48” x 96” x 1”

  • Weight

    75 lbs. per sheet

  • Max. Sheets Per Pallet

    35

  • Shipping Classification
    65
  • Performance and Testing

    Extensively tested for fire resistance in standard building and hydrocarbon fire test methods, Super Firetemp M meets or exceeds ASTM C656, Type II, Grade 6.

Applications

Since Super Firetemp M possesses both exceptional strength and insulation qualities, it can be readily machined into component parts of many sizes and shapes. Uses include fire-rated enclosures around structural steel, fire-rated walls, pipe supports, high temperature oven and refractory backup.

Installation and Fabrication

Super Firetemp M is easily machined with standard carpentry tools and installed using drywall screws, nails, or an automatic nailer. It can be V-grooved for custom fitting on tanks and vessels as thermal insulation and a fire barrier, meeting UL, NFPA, and API standards. The surface accepts paint, wall coverings, and veneers.

Shipping

Shipping will be automatically calculated at checkout for all orders within the contiguous United States. Orders of in-stock materials generally ship from our factory within 1-3 business days after receipt of the order. Delivery times vary depending on location within the United States. You will receive a confirmation email with tracking information on the day your order ships.

Use our Contact Us form to receive shipping charges for delivery outside of the contiguous United States, or for expedited delivery.

There is a $65 charge per pallet. Please note that depending on order size, a shipment may contain multiple pallets. Maximum pallet quantities are noted in the Product Details above.

Shipping class for Super Firetemp® M - 48” x 96” x 1” is 65.
