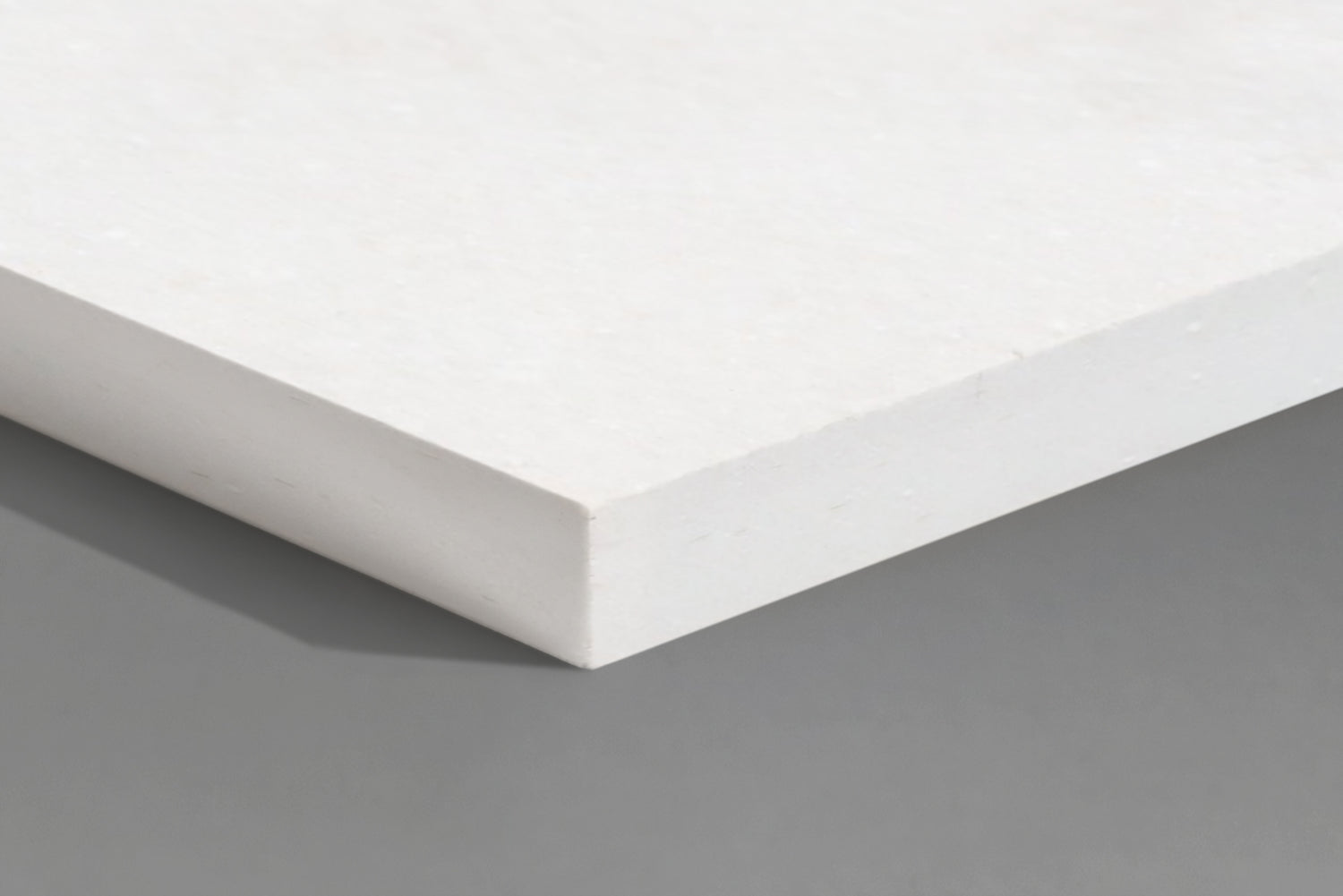

Marinite® C - 48” x 96” x 1-1/2"

$1,508.81
Taxes, discounts and shipping calculated at checkout.

Taxes, shipping and discounts calculated at checkout.

Marinite® C is a calcium silicate insulation board with a nominal density of 54 pcf (865 kg/m3). It is an inorganic, non-combustible, high-temperature insulation specifically engineered for conveying, containing, handling, and forming molten aluminum and other non-ferrous metals. It can be used in systems operating up to 1400°F (760°C). Marinite C is made primarily of micro silica, calcium silicate and reinforcing fibers. This product is off-white, essentially dust-free, contains no asbestos, mercury or lead, and maintains clean surfaces that won't contaminate molten metal.

Product Downloads:

Product Details
  • Manufacturer

    BNZ Materials, Inc.

  • Size

    48” x 96” x 1-1/2”

  • Weight

    216 lbs. per sheet

  • Max. Sheets Per Pallet

    15

  • Shipping Classification
    50
  • Performance and Testing

    Marinite C panels have many outstanding advantages. Metals do not adhere to them, even when they cool and solidify, so skull can be easily removed. They require no foundry facing wash, and do not lead to contamination of the metals. Molten metals are conveyed with less heat loss, so stay at a more uniform temperature, and therefore can be handled at a lower temperature.

    Because they have a low heat capacity, preheating isn't required. They are crack- and shock-resistant, and offer cost-efficiency through a long service life.

Applications

Applications include high-temperature insulation for conveying, containing, and handling molten aluminum and other non-ferrous metals. Marinite® C is used in launders, trough linings, spouts, floats, stoppers, dams, baffles, and basins. It offers a durable, non-combustible solution for metal forming and processing environments.

Installation and Fabrication

Marinite C can be cut with a brickmason’s saw or common woodworking tools for small jobs.

Shipping

Shipping will be automatically calculated at checkout for all orders within the contiguous United States. Orders of in-stock materials generally ship from our factory within 1-3 business days after receipt of the order. Delivery times vary depending on location within the United States. You will receive a confirmation email with tracking information on the day your order ships.

Use our Contact Us form to receive shipping charges for delivery outside of the contiguous United States, or for expedited delivery.

There is a $65 charge per pallet. Please note that depending on order size, a shipment may contain multiple pallets. Maximum pallet quantities are noted in the Product Details above.

Shipping class for Marinite® C - 48” x 96” x 1-1/2" is 50.
